Incoming material and preparation
Which grape varieties and target colour will be used, and should the process maximise skin colour extraction or minimise it?
How will the finished juice be checked for tartrate deposits during its intended storage, and what stem and seed carryover can the extraction stage tolerate?
Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Product routes
- grape juice
- juice concentrate
- jelly base

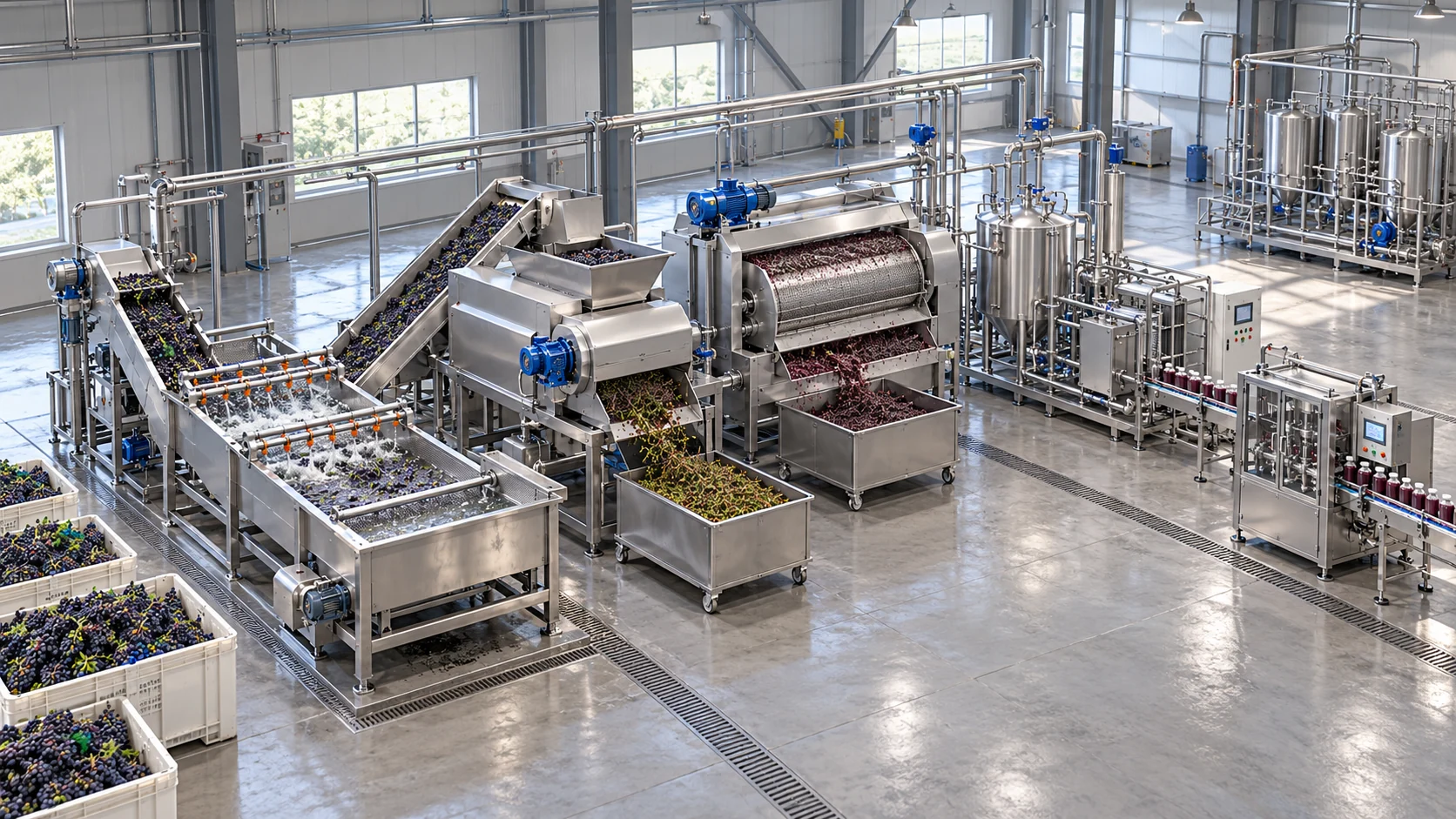

Receive separate lots
Inspect bunches and identify the variety and condition.
Keep light and dark juice objectives visible in the lot records rather than treating all grapes as one interchangeable feed.
- Equipment duty: Inspection conveyor and receiving hopper
Destem and clean
Separate stems and foreign matter from the edible fruit fraction.
Stems and attached debris need their own reject route before crushing and pressing.
- Equipment duty: Destemmer with inspected feed and cleaning arrangement
Open the berries
Prepare a consistent feed without unnecessary seed disruption.
Assess the accepted amount of skin contact and seed carryover for the intended flavour and colour.
- Equipment duty: Controlled crusher
Develop the extraction route
Recover juice from the prepared grape feed.
A coloured juice may need a different skin-contact development trial from a light juice; no fixed conditioning recipe is assumed.
- Equipment duty: Covered conditioning vessel where required and juice press
Review clarity and deposits
Separate coarse solids and evaluate the desired final appearance.
Investigate sediment or crystalline deposits through representative holding trials rather than treating a newly filtered sample as a finished stability result.
- Equipment duty: Screen, buffer vessel and selected clarification equipment
Select concentration or direct treatment
Send approved juice to its specified downstream route.
Concentrate is a different product specification with different handling and reconstitution requirements.
- Equipment duty: Closed juice buffer and optional evaporator interface
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The juice or concentrate base route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
- Equipment duty: Selected treatment unit, controlled transfer and process instruments
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
- Equipment duty: Compatible filler, packaging interface and lot-identification station
Product and residue streams
Collect stems, skins and seeds separately from juice. Their proposed co-product use does not automatically belong to the juice line supply.
Quality checks along the process
Record colour, flavour, acidity, soluble solids and sediment behaviour together. Compare samples using the same holding and preparation method.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Equipment modules and selection
| Equipment module | Process role | Selection basis |
|---|---|---|
| Inspection conveyor and receiving hopper | Control the incoming-material presentation before preparation. | Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine. |
| Controlled crusher | Pressing or refining. | A press separates liquid from a prepared feed, while a refiner develops a flesh-containing product. The buyer should define which fraction is sold before selecting the separation train. |
| Covered conditioning vessel where required and juice press | Create the agreed intermediate condition for downstream equipment. | Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material. |
| Product buffer and transfer system | Connect preparation, treatment and filling without assuming all sections run at the same rate. | Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled. |
| Preservation, packaging and cleaning interfaces | Complete the declared process boundary. | The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification. |
Cleaning circuits and physical access
Stem fragments and skins can accumulate in crusher and press contact points. Include press-surface access, screening inspection and a separate cleaning plan for any clarification equipment.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage interfaces
Specify whether the juice or concentrate base is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Inputs for the engineering brief
- Trial declared grape varieties and review colour extraction, seed integrity and settled samples after consistent holding.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Compare the shell and seed-pulp boundary
A passion fruit process begins by defining shell opening and the seed-bearing pulp fraction. Other materials can need an entirely different peel, stone, press-mash or juice-extraction section before a screened stream reaches a buffer.
Use the passion fruit route as a comparison of equipment roles, with its own seed and texture decisions. The links below explain those existing duties; they do not establish that one opening or finishing arrangement suits every fruit.
Sources and processing scope
The references support these material and processing considerations. The actual equipment, process conditions, preservation method and packaging interface follow the specified raw material and finished product.
In practice
Questions about this stage
Is a grape juice plant a winemaking line?
No. Non-alcoholic juice has a different product and preservation brief. Shared operations such as destemming or pressing do not establish the rest of the process or its hygiene and distribution requirements.
Why can a clear sample later form deposits?
The sample’s appearance immediately after separation is only one observation. The product brief should include representative holding trials and investigation of the particular sediment or crystals, with an appropriate process developed for that product.
What should a useful grape trial establish?
Trial declared grape varieties and review colour extraction, seed integrity and settled samples after consistent holding. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
