Incoming material and preparation
What soil load, root size and peel condition will the receiving section encounter, and which preparation steps are included?
Does the customer want retained carrot body or a lower-pulp juice, and how will cutting size, fibre removal and the resulting pumpability be compared in representative trials?
Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Product routes
- juice
- juice concentrate
- purée

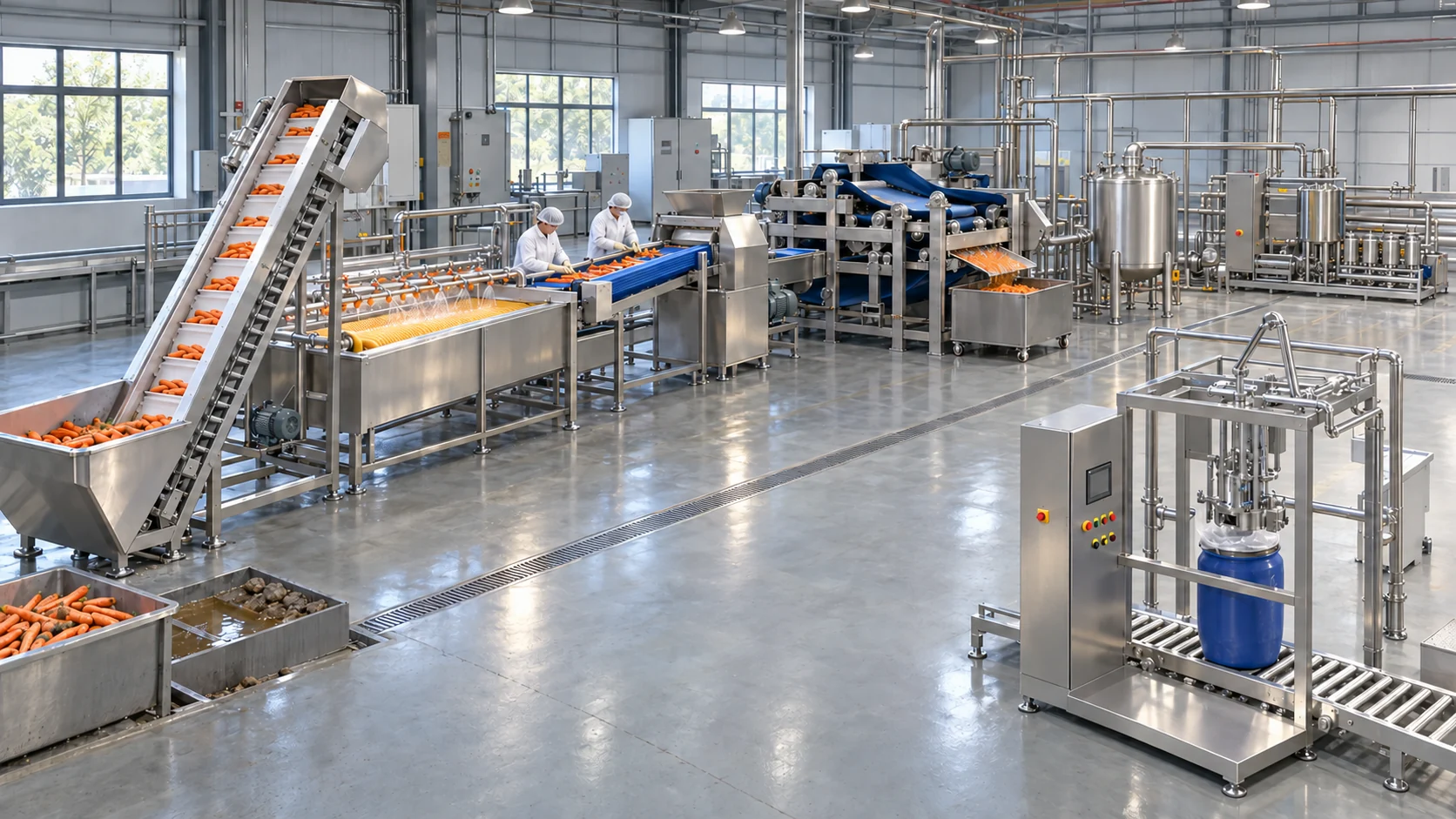

Receive and inspect roots
Identify accepted carrot size, variety and defects.
Record the incoming soil load and root condition used in the demonstration.
- Equipment duty: Root receiving and inspection conveyor
Remove adhering soil
Clean roots before edible preparation.
Keep grit-bearing water and root waste outside the clean cutting and juice areas.
- Equipment duty: Root washer with rinse and soil discharge
Trim and peel as specified
Prepare the accepted edible fraction.
A peeled or unpeeled product objective changes both recovery and the coarse-material brief.
- Equipment duty: Trimming station and selected peeling unit
Prepare the extraction feed
Develop a repeatable press feed.
Any conditioning operation should have a stated purpose and trial basis; it is not a universal preservation treatment.
- Equipment duty: Root cutter or shredder and defined conditioning interface where required
Separate juice
Recover the declared liquid fraction.
Compare press cake, suspended material and desired juice character against the same accepted root basis.
- Equipment duty: Juice press and coarse screen
Finish and transfer
Meet the chosen pulp and particle specification.
Concentration or a separate carrot purée product requires a different downstream project brief.
- Equipment duty: Finishing unit and covered juice buffer
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The pressed carrot juice route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
- Equipment duty: Selected treatment unit, controlled transfer and process instruments
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
- Equipment duty: Compatible filler, packaging interface and lot-identification station
Product and residue streams
Segregate soil-bearing rejects, peel/trim material and press cake. Record edible preparation losses separately from juice extraction recovery.
Quality checks along the process
Check grit, coarse particles, flavour, colour and sediment on identified root lots. Keep the preparation and any conditioning conditions with the sample records.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Equipment modules and selection
| Equipment module | Process role | Selection basis |
|---|---|---|
| Root receiving and inspection conveyor | Control the incoming-material presentation before preparation. | Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine. |
| Trimming station and selected peeling unit | Soil removal and texture development. | Preparation, particle size and any conditioning step should be evaluated for the actual vegetable and product. Do not borrow a fruit-juice preservation schedule for a vegetable formulation. |
| Root cutter or shredder and defined conditioning interface where required | Create the agreed intermediate condition for downstream equipment. | Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material. |
| Product buffer and transfer system | Connect preparation, treatment and filling without assuming all sections run at the same rate. | Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled. |
| Preservation, packaging and cleaning interfaces | Complete the declared process boundary. | The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification. |
Cleaning circuits and physical access
Soil and root fibres require open-preparation access, while juice-contact equipment needs its own cleaning verification. Inspect cutting, press and screen contact points.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage interfaces
Specify whether the pressed carrot juice is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Inputs for the engineering brief
- Trial the accepted root and soil ranges, keeping peeled/unpeeled objectives and any conditioning operation explicit.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Compare the shell and seed-pulp boundary
A passion fruit process begins by defining shell opening and the seed-bearing pulp fraction. Other materials can need an entirely different peel, stone, press-mash or juice-extraction section before a screened stream reaches a buffer.
Use the passion fruit route as a comparison of equipment roles, with its own seed and texture decisions. The links below explain those existing duties; they do not establish that one opening or finishing arrangement suits every fruit.
Sources and processing scope
The references support these material and processing considerations. The actual equipment, process conditions, preservation method and packaging interface follow the specified raw material and finished product.
In practice
Questions about this stage
Can carrot purée and juice use the same acceptance sample?
No. A purée retains edible flesh while a juice route separates liquid. The texture, recovery and downstream transfer specifications should distinguish those products.
Does the root name determine a preservation schedule?
No. The actual composition, particles, formulation, package and distribution need assessment. A carrot preparation trial does not validate a final treatment or shelf life.
What should a useful carrot trial establish?
Trial the accepted root and soil ranges, keeping peeled/unpeeled objectives and any conditioning operation explicit. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
