Incoming material and preparation
What ripeness range can the receiving specification accept, and how will immature, starchier fruit be excluded or handled in a separate product?
How quickly must peeled fruit enter the controlled pulp stream, and what colour, consistency and acidification policy will the buyer use to accept the finished banana purée?
Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Product routes
- purée
- smoothie base
- fruit preparation
Control incoming ripeness
Identify accepted bananas and remove unsuitable fruit.
Record maturity and condition before combining peeled flesh into a common feed.
- Equipment duty: Receiving and inspection conveyor
Wash before peeling
Clean the outside before edible flesh is exposed.
Keep peels and dirty receiving surfaces out of the clean-flesh transfer.
- Equipment duty: Fruit washer and rinse elevator
Peel and inspect flesh
Separate peel and inspect the edible portion.

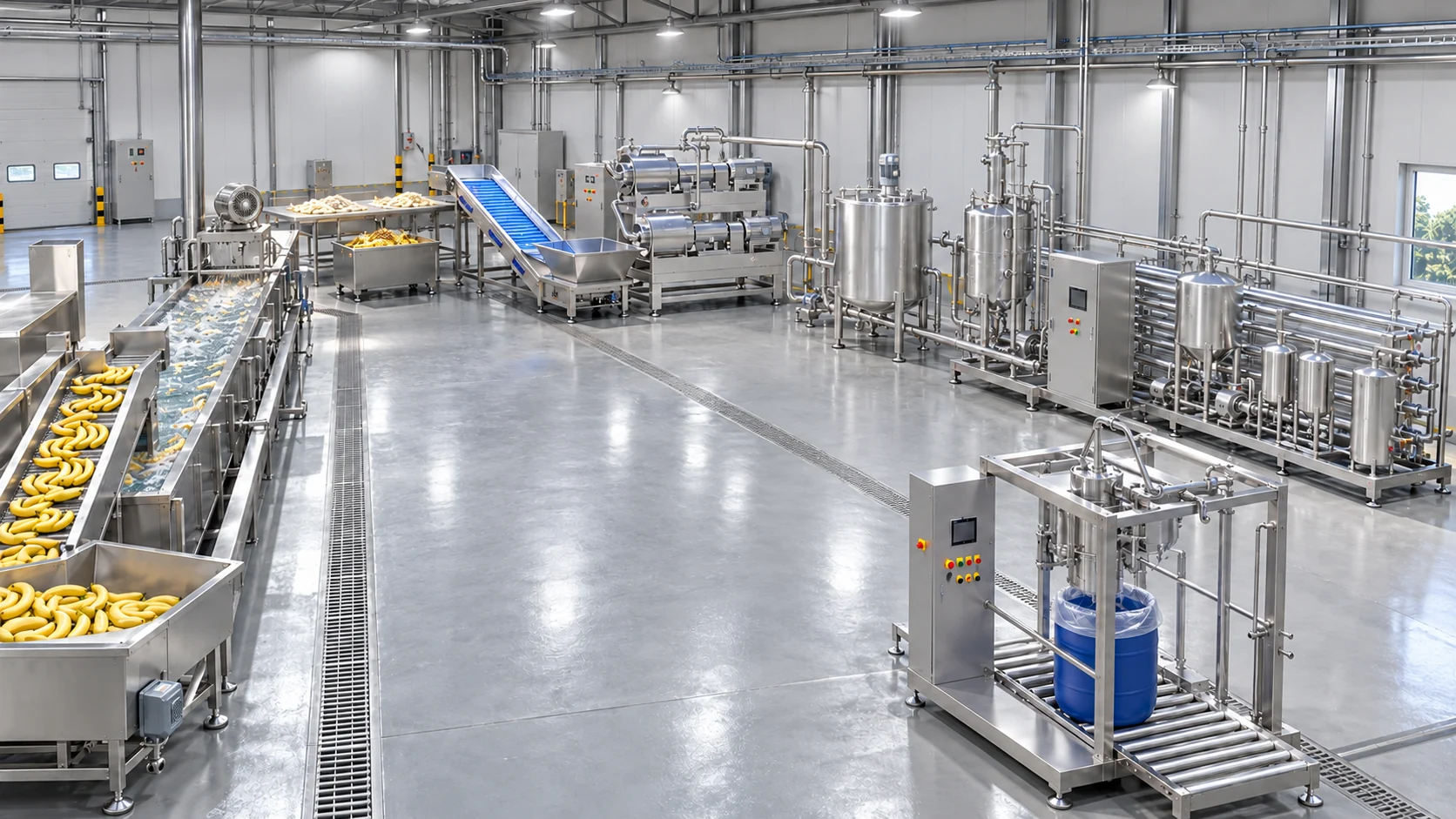

Specify the actual peeling arrangement rather than implying automatic peeling from a complete-line illustration.
- Equipment duty: Peeling station and clean transfer belt
Mash with controlled exposure
Create a repeatable flesh feed for refining.
Assess the consequences of delays and open transfer on the accepted colour and consistency.
- Equipment duty: Mashing unit and suitable feed pump
Refine and define the product
Remove unwanted coarse material and establish the desired texture.
If acidification is proposed, formulation and measured product properties must be developed separately from basic mashing.
- Equipment duty: Purée refiner with selected contact parts
Match the viscous transfer duty
Deliver the agreed banana product to its selected downstream route.
The handling and treatment of natural and acidified purées cannot be specified from the fruit name alone.
- Equipment duty: Covered tank and suitable purée pump
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The peeled-fruit purée route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
- Equipment duty: Selected treatment unit, controlled transfer and process instruments
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
- Equipment duty: Compatible filler, packaging interface and lot-identification station
Product and residue streams
Collect peels, rejected flesh and coarse refining rejects separately. Record any formulation additions independently from recovered banana flesh.
Quality checks along the process
Compare ripeness, browning, coarse fibre and consistency at a defined sample condition. Changes in formulation require a new product identity and process review.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Equipment modules and selection
| Equipment module | Process role | Selection basis |
|---|---|---|
| Receiving and inspection conveyor | Control the incoming-material presentation before preparation. | Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine. |
| Peeling station and clean transfer belt | Peel, seed and fibre separation. | Preparation should be evaluated using the actual variety and ripeness range. A visually smooth sample does not by itself demonstrate controlled coarse particles, acceptable fibre or stable transfer. |
| Mashing unit and suitable feed pump | Create the agreed intermediate condition for downstream equipment. | Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material. |
| Product buffer and transfer system | Connect preparation, treatment and filling without assuming all sections run at the same rate. | Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled. |
| Preservation, packaging and cleaning interfaces | Complete the declared process boundary. | The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification. |
Cleaning circuits and physical access
Banana paste can remain on screens and in transfer fittings. Include access to adhering residues and verify cleaning for the actual formulation.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage interfaces
Specify whether the peeled-fruit purée is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Inputs for the engineering brief
- Compare the accepted ripeness range and the intended natural or acidified specification, with controlled sample exposure.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Compare the shell and seed-pulp boundary
A passion fruit process begins by defining shell opening and the seed-bearing pulp fraction. Other materials can need an entirely different peel, stone, press-mash or juice-extraction section before a screened stream reaches a buffer.
Use the passion fruit route as a comparison of equipment roles, with its own seed and texture decisions. The links below explain those existing duties; they do not establish that one opening or finishing arrangement suits every fruit.
Sources and processing scope
The references support these material and processing considerations. The actual equipment, process conditions, preservation method and packaging interface follow the specified raw material and finished product.
In practice
Questions about this stage
Is acidification a standard setting for every banana line?
No. It is a formulation decision with implications for the product and downstream process. The measured product and preservation route require explicit development and validation.
Why specify the interval after peeling?
The condition reaching the refiner depends on handling and interruption patterns as well as ripeness. A trial should record exposure and delays so colour and texture comparisons are meaningful.
What should a useful banana trial establish?
Compare the accepted ripeness range and the intended natural or acidified specification, with controlled sample exposure. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
