Incoming material and preparation
Does the buyer want smooth avocado purée, a textured formulated base or feed for oil extraction, and which route defines acceptance?
How will stone pieces and dark peel fragments be rejected, and what colour change is acceptable from opening the fruit through the chosen packing and storage chain?
Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Product routes
- purée
- guacamole base
- pulp for a separate oil route
Grade the accepted supply
Identify variety, maturity and damaged fruit.
Include the accepted firmness range in preparation trials; over-soft and firm fruit may not separate alike.
- Equipment duty: Inspection conveyor and firmness sampling
Wash the outside
Clean fruit before flesh is exposed.
Separate dirty external handling from the stone-and-skin removal area.
- Equipment duty: Fruit washer and clean transfer elevator
Separate stone and skin
Recover the flesh while excluding the large stone.
Inspect remaining skin specks and flesh lost with rejects rather than assuming complete peeling from a machine name.
- Equipment duty: Avocado-compatible destoner and skin-separation arrangement
Refine the flesh
Develop the texture required by the intended food ingredient.
Assess mouthfeel, coarse particles and visible skin at representative ripeness levels.
- Equipment duty: Purée refiner with controlled feed
Review exposure and holding
Limit unnecessary open handling between preparation and the next process.
Any inert-gas or other oxidation-control provision must be specified and evaluated; it is not a substitute for preservation.
- Equipment duty: Covered collection and transfer arrangement
Confirm the downstream boundary
Supply the food-purée route under declared inlet conditions.
Oil extraction is a separate process, and a prepared avocado flesh stream does not prove that an oil plant is included.
- Equipment duty: Purée buffer and viscosity-compatible pump
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The flesh purée route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
- Equipment duty: Selected treatment unit, controlled transfer and process instruments
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
- Equipment duty: Compatible filler, packaging interface and lot-identification station
Product and residue streams
Segregate stones, skins and flesh-rich rejects. An oil-recovery proposal requires its own material balance and product specification.
Quality checks along the process
Review skin specks, colour change, coarse particles and consistency using identified ripeness lots. Keep sample exposure and holding conditions consistent.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.

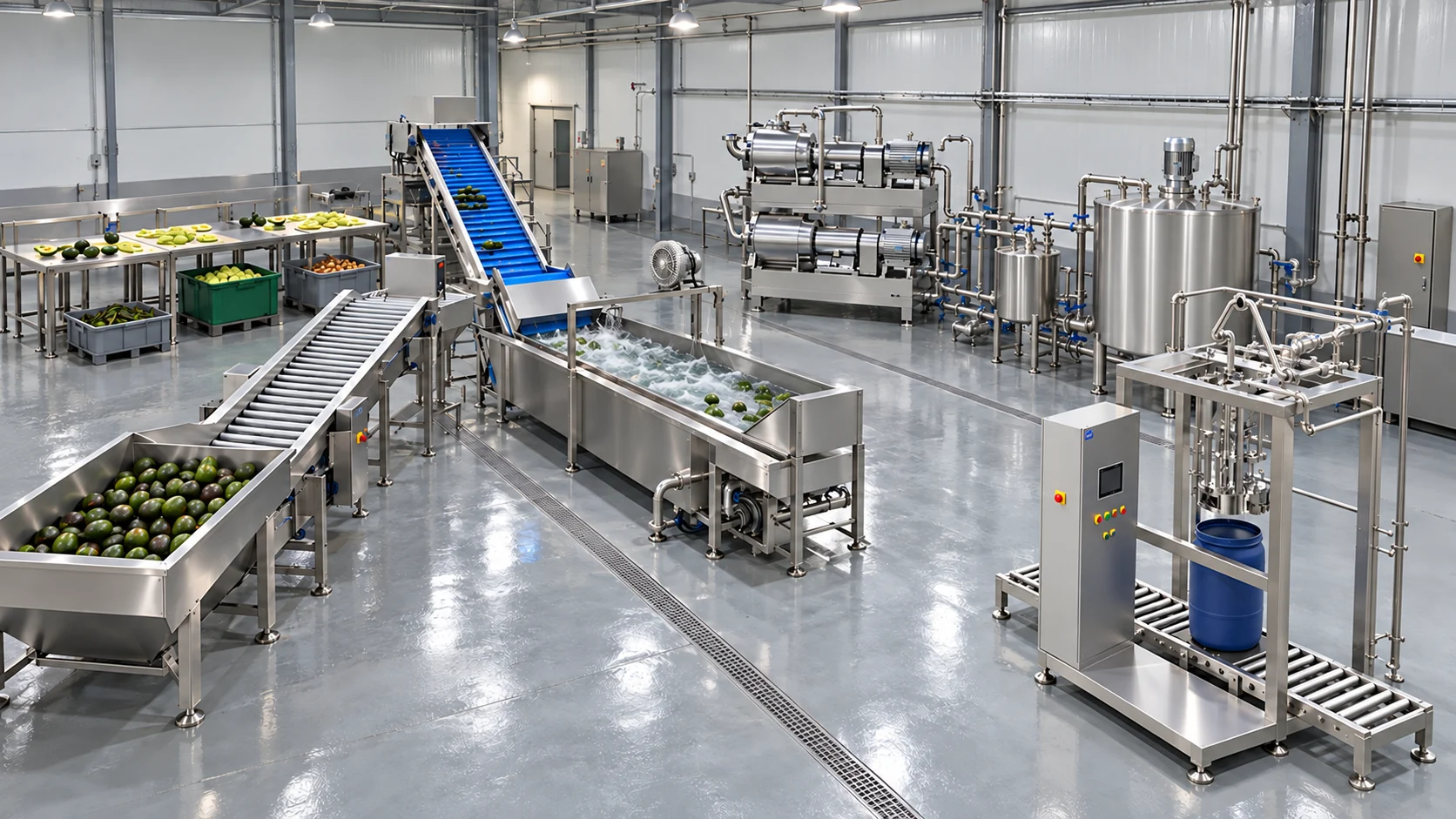

Equipment modules and selection
| Equipment module | Process role | Selection basis |
|---|---|---|
| Inspection conveyor and firmness sampling | Control the incoming-material presentation before preparation. | Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine. |
| Avocado-compatible destoner and skin-separation arrangement | Peel, seed and fibre separation. | Preparation should be evaluated using the actual variety and ripeness range. A visually smooth sample does not by itself demonstrate controlled coarse particles, acceptable fibre or stable transfer. |
| Purée refiner with controlled feed | Create the agreed intermediate condition for downstream equipment. | Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material. |
| Product buffer and transfer system | Connect preparation, treatment and filling without assuming all sections run at the same rate. | Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled. |
| Preservation, packaging and cleaning interfaces | Complete the declared process boundary. | The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification. |
Cleaning circuits and physical access
Fat-containing purée and skin residues need product-specific cleaning verification. Provide access to destoner contact parts, refiner screens and transfer seals.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage interfaces
Specify whether the flesh purée is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Inputs for the engineering brief
- Trial the accepted ripeness and skin ranges, recording flesh quality and the reject fraction separately.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Compare the shell and seed-pulp boundary
A passion fruit process begins by defining shell opening and the seed-bearing pulp fraction. Other materials can need an entirely different peel, stone, press-mash or juice-extraction section before a screened stream reaches a buffer.
Use the passion fruit route as a comparison of equipment roles, with its own seed and texture decisions. The links below explain those existing duties; they do not establish that one opening or finishing arrangement suits every fruit.
Sources and processing scope
The references support these material and processing considerations. The actual equipment, process conditions, preservation method and packaging interface follow the specified raw material and finished product.
In practice
Questions about this stage
Does an avocado purée line also produce oil?
Not unless a separate extraction and oil-handling scope is specified. A common preparation section can supply different downstream projects, but those projects are not interchangeable.
Can oxidation control establish shelf life?
No. Managing exposure addresses a quality consideration. The actual product, preservation, package and storage chain still need their own validation.
What should a useful avocado trial establish?
Trial the accepted ripeness and skin ranges, recording flesh quality and the reject fraction separately. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
